Signal Generator BPSG6 OEM

Signal Generator BPSG6 OEM (23,5MHz to 6GHz)

by Aaronia
$ 1,290.00 - $ 1,290.00
$ 1,290.00
$ 1,290.00 - $ 1,290.00
$ 1,290.00

The new signal generator series BPSG from Aaronia offer an unprecedented mix of performance, design and functions, especially in its price category.

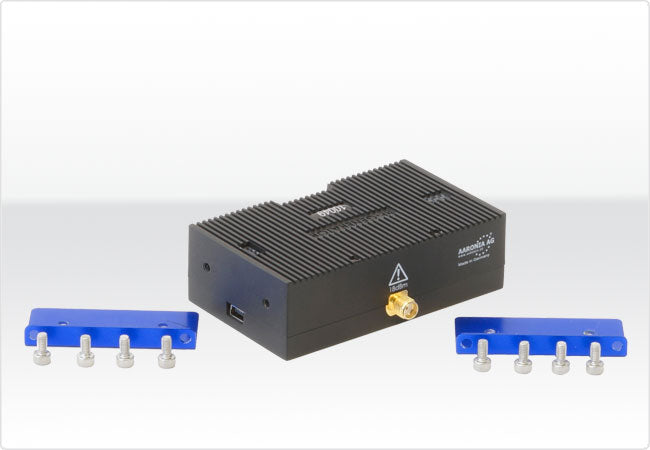

Due to the OEM housing the BPSG6 OEM is perfect for installation in existing systems. The provided screw holes make installation here immensely.

The BPSG6 OEM offers to adjust the frequency (between 23,5MHz to 6GHz) and power level (-45dBm to +18dBm, 0,5dB steps) freely.

Highlights

  • World smallest battery powered and intelligent stand alone RF generator up to 6GHz
  • Generator can be programmed with simple or very complex batch programs which start automatically after every power on (e.g. generate a fixed frequency and level OR start a specific sweep etc. )
  • Can be used as mini RF frequency and power level calibrator
  • Stable frequency generation, thanks to the internal TCXO timebase
  • Extremely compact and lightweight (150g)

Technical data

  • Frequency range: 23,5 MHz to 6 GHz
  • Up to +18dBm output power (female SMA-connector)
  • Smallest power level: -45dBm
  • Up to 63dB dynamic range
  • Frequency accuracy: 15Hz (<100MHz), 150Hz (<1GHz), 450Hz (<3GHz), 900Hz (<6GHz)
  • Modulations: AM, FM, PM

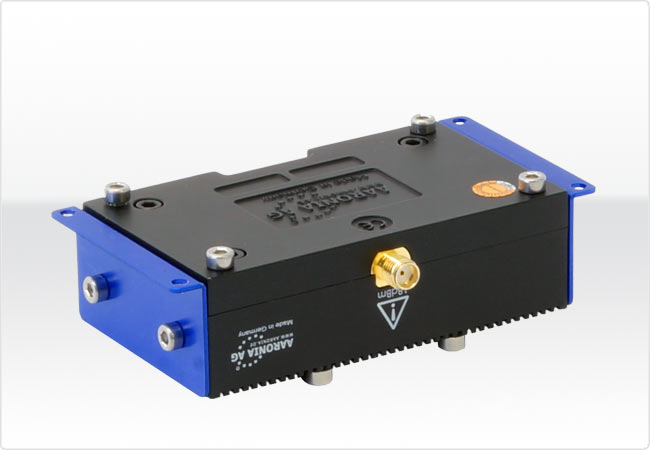

  • Mounting drillings from all sides. Perfect for OEM installation
  • Onboard TCXO for very high frequency accuracy

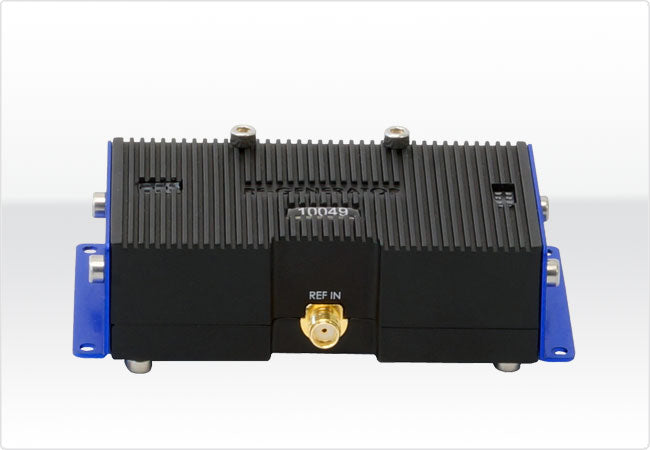

  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system

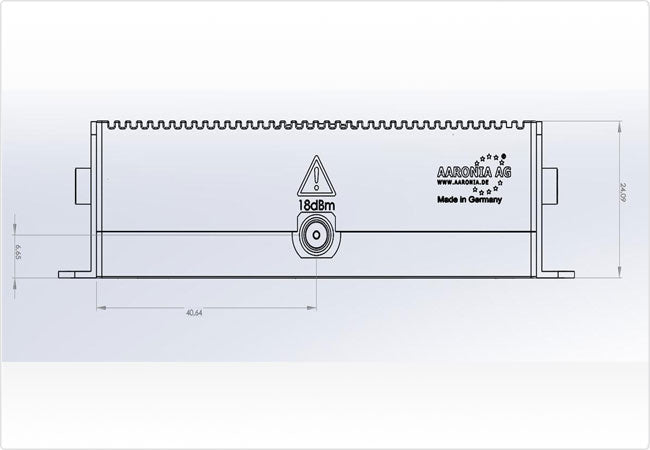

  • Very small form factor, 81x49x24mm only
  • Very lightweight, only 150gr incl. battery

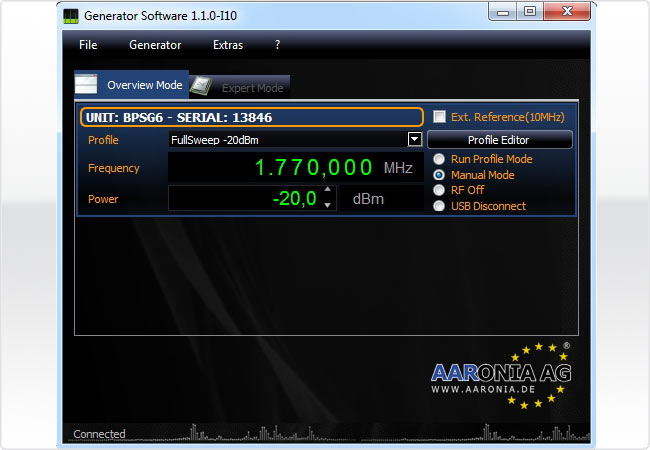

Download latest Generator Software for Windows (1.6.6, 31MB)

Download latest Generator Software for MacOSX (1.6.6, 31MB)

Download latest Generator Software for Linux
(1.6.4, 31MB)
Datasheet

* The item is ordered by demand, so expect a 2-3 week lead time from time of purchase.
