Swiss-Shield® EVOLUTION-ULTRA
Original price
$ 49.99
-
Original price
$ 49.99
Original price
$ 49.99
$ 49.99
-
$ 49.99
Current price
$ 49.99

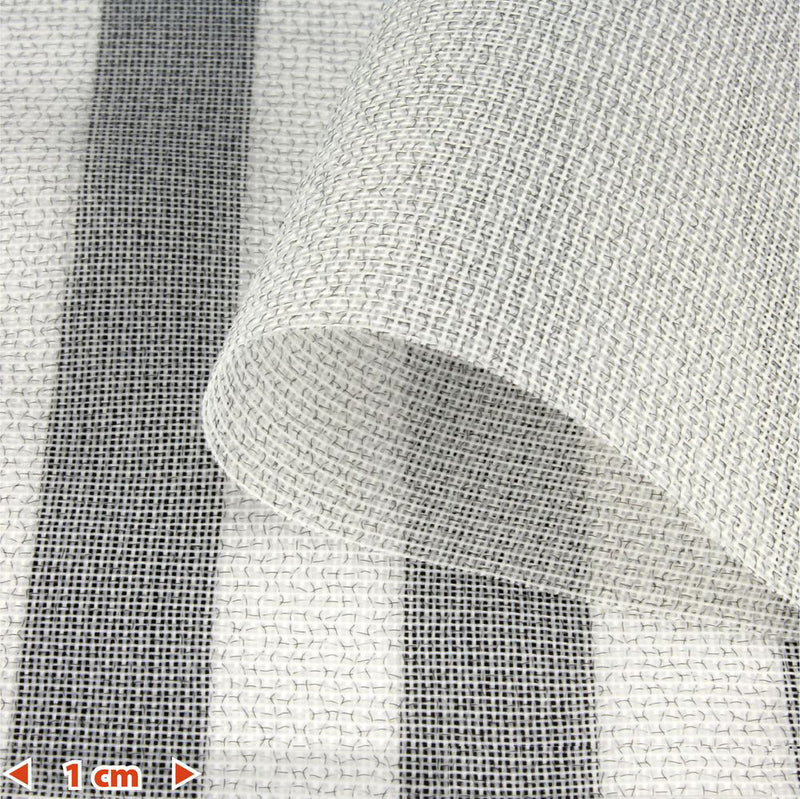

EVOLUTION-ULTRA™ from Swiss-Shield® is a semi-transparent polyester fabric for the shielding of high-frequency electromagnetic fields (HF) and low-frequency electric fields (LF). EVOLUTION-ULTRA™ is the second fabric of a new product series from Swiss Shield®. In the new ULTRA-series the silver-/copper-filament is coated with carbon, why these fabrics are electrically conductive to shield low-frequency electric fields (LF).

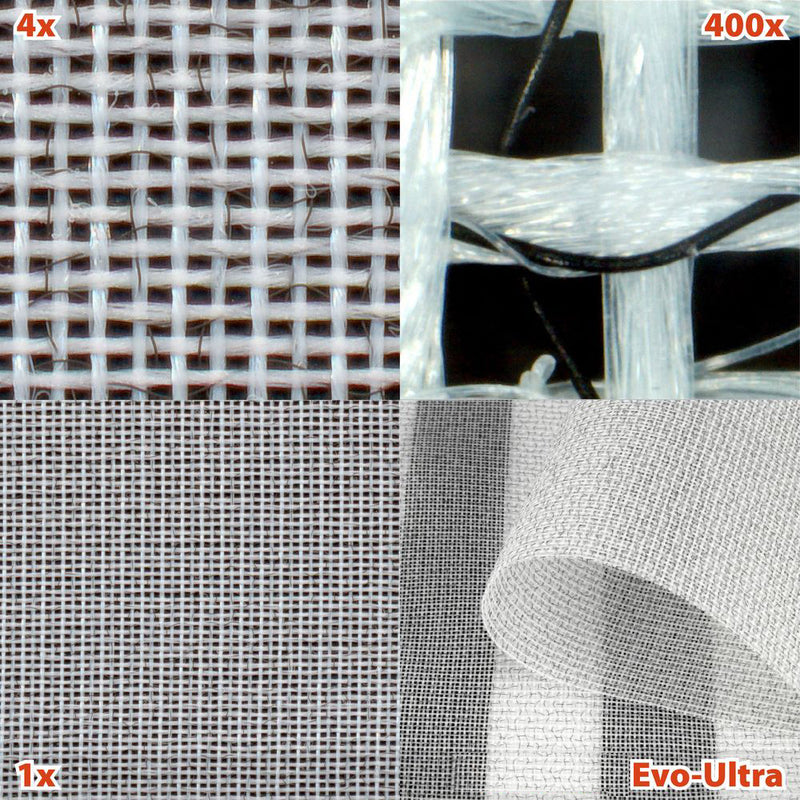

- Semi-transparent polyester fabric
- Can be grounded due to the conductive surface
- Excellent cost/performance ratio
- Textile characteristics: Washable, easy to iron and process
- Quality grade: Very high
*Note: To purchase a custom length of fabric, place an order for multiple quantities of the 1ft option. The amount ordered will be cut as a single piece unless specified otherwise.
Order quantity: This product is cut off according to your specifications, a return or revocation are not possible.

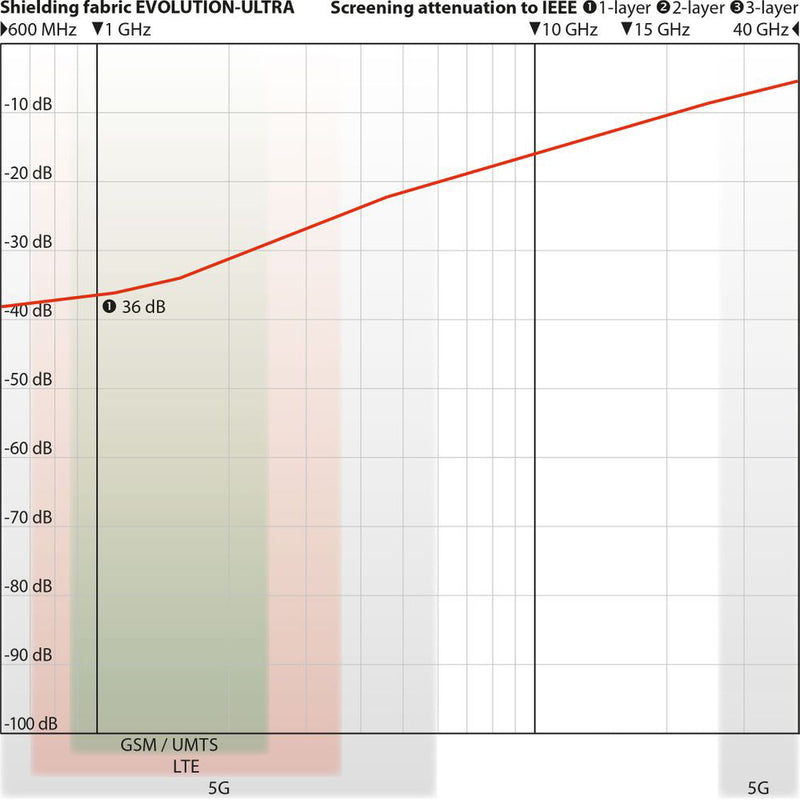

Screening attenuation: All stated attenuation values apply at 1 Ghz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
Grounding: Fabric grounding kit
Fabric care: Washing at gentle cycle 30°C | Ironing without steam at degree 1 | Drying at low temperature | No bleaching | No chemical dry-cleaning | For allergy sufferers: Every new fabric smells, wash before its first usage!
Application: Curtain, Window, Canopy
Technical data
- Width: 6.56 ft
- Length: Available by the foot
- Attenuation: 36 dB
- Color: Light grey
- Raw materials: 93 % polyester, 6 % copper/silver, 1% carbon
- Weight: 115 g/m²
- Dimension stability: +/- 3 %
- Report screening attenuation
