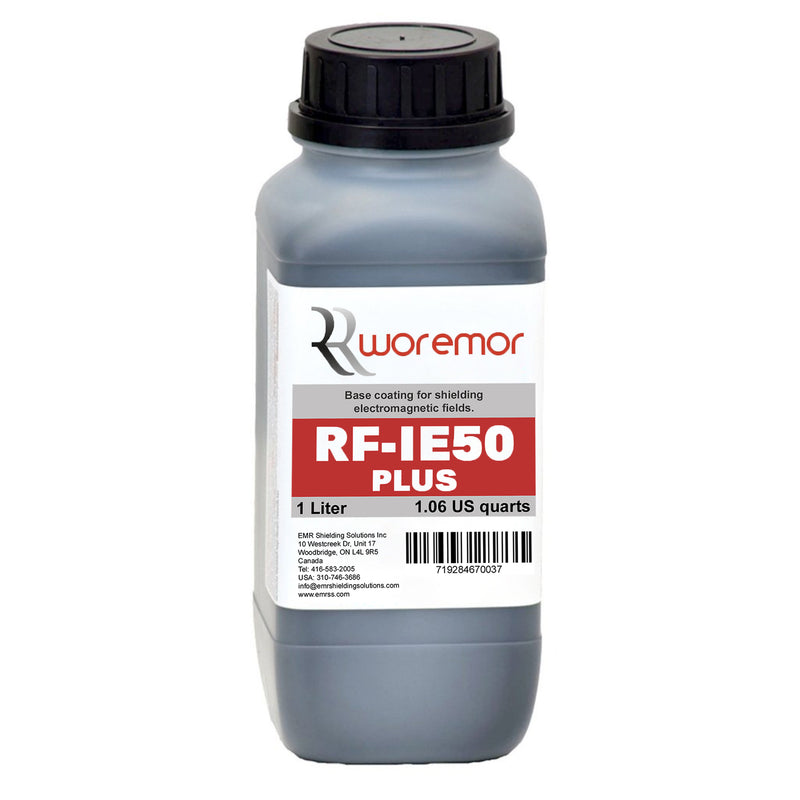

5G EMF Paint WOREMOR RF-IE50 PLUS - 1L

5G EMF Paint WOREMOR RF-IE50 PLUS - 1L

by Woremor
Save 5% Save 5%
$ 84.00
$ 84.00 - $ 84.00
$ 84.00
$ 79.99
$ 79.99 - $ 79.99
$ 79.99

Shielding paint for shielding high-frequency radiation (HF) and low-frequency electric fields (LF).  Special shielding paint with the focus on maximum shielding, if every single dB counts.  Limitations at hardness and abrasion resistance.  Breathable, solvent-free, plasticizer-free and low-emission.  With phenomenal physical and chemical properties, along with high ecology.

Color: Black

Coverage: 5 Liter - 37.16 sq. Meters (400 sq. feet)

Screening attenuation

At 1 GHz: Single layer 40 dB | Double layer 48 dB | Three layer 54 dB
At 40 GHz: Single layer 44 dB | Double layer 66 dB | Three layer 86 dB

Underground

Excellent adhesion on almost all substrates interior and exterior.

Top coating

Preferably covered with plastic bonded water-based emulsion paints, dispersion silicate paints, facade paints or silicon resin paints.

Grounding

Must be grounded! For interior, we recommend the grounding strap GSX plus grounding plate GS, for exterior the fiber additive AF3 plus the grounding plate GF.

Frost resistance

This product is frost resistant (proved for 5 frost-/thaw cycles) and can be shipped throughout the year by air cargo or ship.

Ingredients

Water, natural graphite, pure acrylic dispersion, carbon black, additives, preservative (BIT, INN, MIT).

Technical data

Please find detailed data in the table overview and the technical data sheet.

Ready for 5G

As we keep developing our paints, they now have an almost linear shielding attenuation for a very large frequency range. This frequency range has included both 5G frequency spectrums for quite some time: FR1 (600 MHz - 6 GHz) and FR2 (24 GHz - 40 GHz).

Safety up to 40 GHz

We have a professional EMC-laboratory according to various standards up to 40 GHz on site, which is operated by long-time experienced staff.  You’ll receive measuring curves and reports from 40/600 MHz - 40 GHz with all our shielding products.

No nanotechnology

Our shielding paints are developed in accordance with strict ecological criteria.  We use, for example, the carbon black with the lowest emission possible on the market and untreated natural graphite.  We consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown.

DUE TO NEW REGULATIONS ALL PAINT MUST BE GROUNDED

(Click here for our grounding products)

EMF Shielding Paint Woremor Technical datasheet

Screening Report

Please refer to our Return Policy for our EMF Shielding Paint
