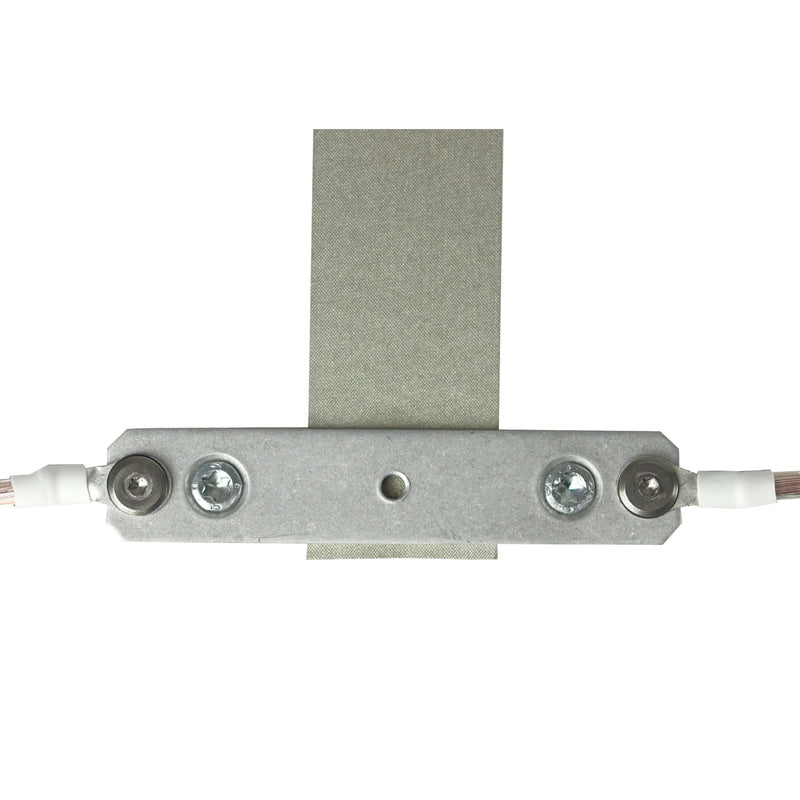

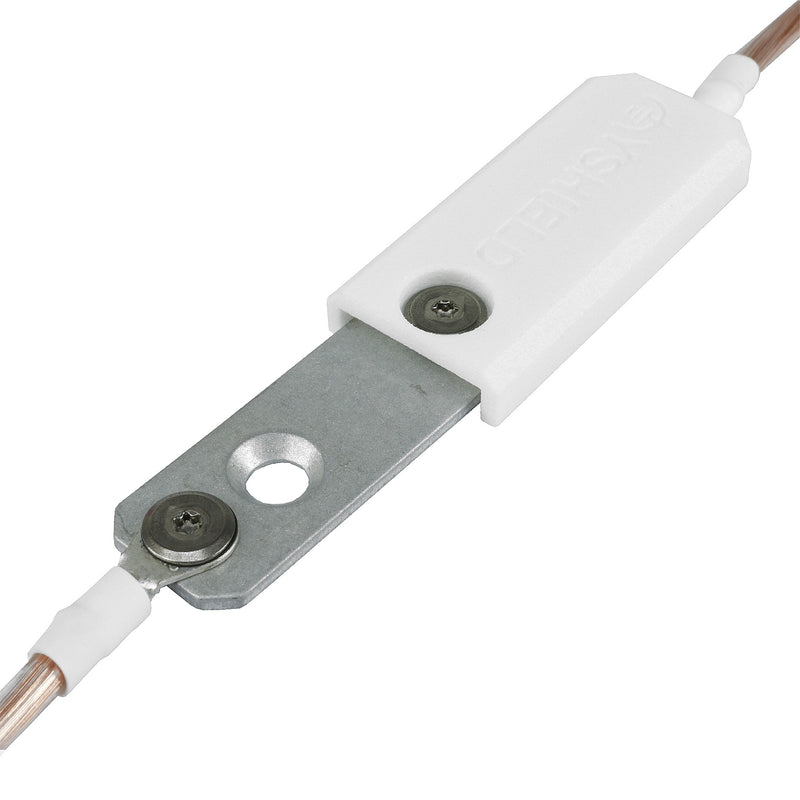

GS1 | Grounding Plate 20x80 mm

Grounding Plate GS1 | 20x80 mm

by EMR Shielding Solutions
$ 19.99 - $ 19.99
$ 19.99
$ 19.99 - $ 19.99
$ 19.99

Small and flat grounding plate 20x80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

  • Connectivity: 2 cable connections
  • Scope of delivery: Aluminum plate 15x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. Cable is not included in the scope of delivery – we recommend our pre-assembled cables GL

Download the Technical Data Sheet for Grounding Plate
