HFE59B-High Frequency Analyzer Kit

High Frequency Analyzer Kit HFE59B

by EMR Shielding Solutions
$ 1,949.00 - $ 1,949.00
$ 1,949.00
$ 1,949.00 - $ 1,949.00
$ 1,949.00

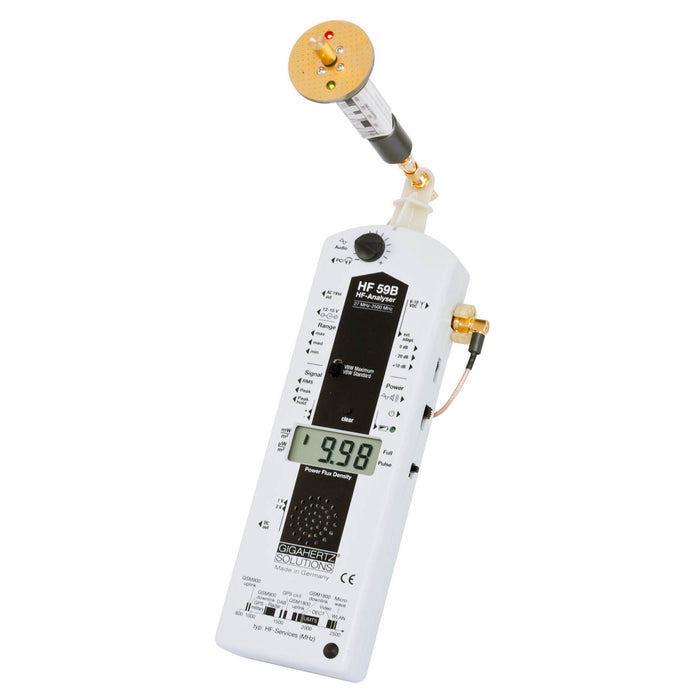

HFE59B is a Professional EMF Meter used for the detection of frequencies from 800MHz to 2,500 MHz. It allows for professional assessment of the exposure and is simple to handle.  The meter is used to identify high frequency radiation coming from mobile radio: GSM, UMTS / G3, cordless telephones (DECT), WLAN (Bluetooth), radar surveillance stations, etc. by means of an acoustic signal proportional to the modulation frequency. The device comes with attachable UBB antenna 27_G3, NiMH battery inside the meter, mains adaptor, battery charger, various adaptors, high pass filter HP800_G3, preamplifier HV10_27G3 and attentuator DG20_G3.

HFE59B HF EMF Meter Features:

  • Measuring range:0.001 μW/m² up to 1,999,000 (with preamplifier and attentuator)
  • Frequency range:800 MHz up to 2,500 MHz(3,300 Mhz with additional tolerance) with direction-finding decoupled log.-per antenna.
  • Frequency range:27 MHz up to 2,500 MHz (3,300 Mhz with additional tolerance) with isotropic ultra broad bandwidth antenna UBB27_G3.
  • Accuracy:3 dB, 5 digits.
  • Clearly simplified measurements with the help of the "peak hold" function
  • Peak value as well as average value (switchable).
  • Radar-/UMTS-optimisation (2 MHz video-bandwith) can be activated.
  • DC-output for long-time records, audio-output, normalised AC-outputexit.
  • Identification of pulsed radiation sources (mobile radio: GSM, UMTS / G3, cordless telephones (DECT), WLAN (Bluetooth), radar surveillance stations, etc. by means of an acoustic signal proportional to the modulation frequency.
  • Included in delivery: Measurement device, log.-per. and attachable UBB antenna 27_G3, NiMH battery inside the meter, mains adaptor, battery charger, various adaptors, high pass filter HP800_G3, preamplifier HV10_27G3, attentuator DG20_G3, detailed instruction manual with factual background information issuing "electro smog".
  • Comes in a plastic case.
  • Made in Germany

User manual
