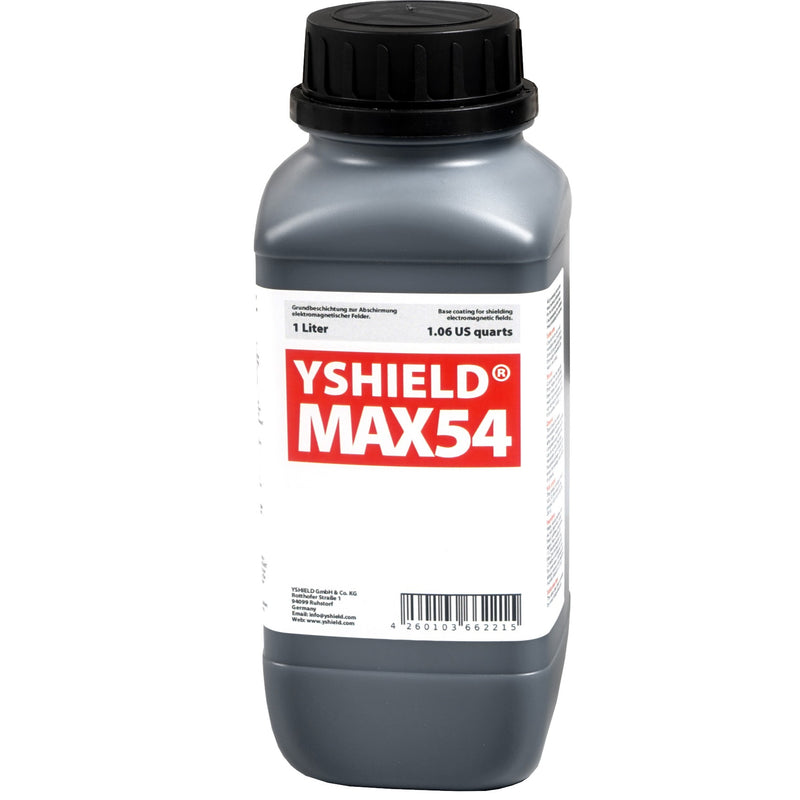

MAX54 - Special Maximum Shielding Paint 1L

YShield MAX54 - High Perfomance Shielding Paint 1L

by YShield
Save 8% Save 8%
$ 84.00
$ 84.00 - $ 84.00
$ 84.00
$ 76.99
$ 76.99 - $ 76.99
$ 76.99

As shielding paint for rooms and buildings

Shielding paint for shielding high-frequency radiation (HF) and low-frequency electric fields (LF). Special shielding paint with the focus on maximum shielding, if every single dB counts. Limitations at hardness and abrasion resistance. Breathable, solvent-free, plasticizer-free and low-emission. With phenomenal physical and chemical properties, along with high ecology.

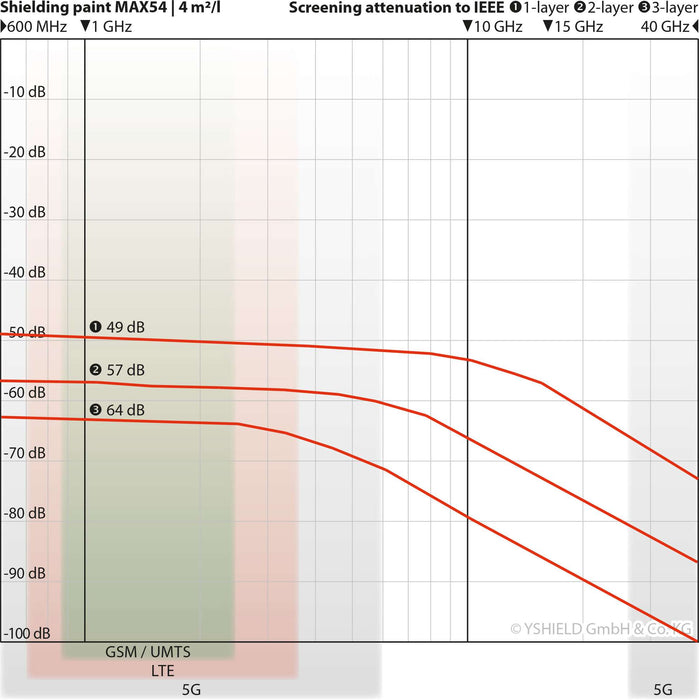

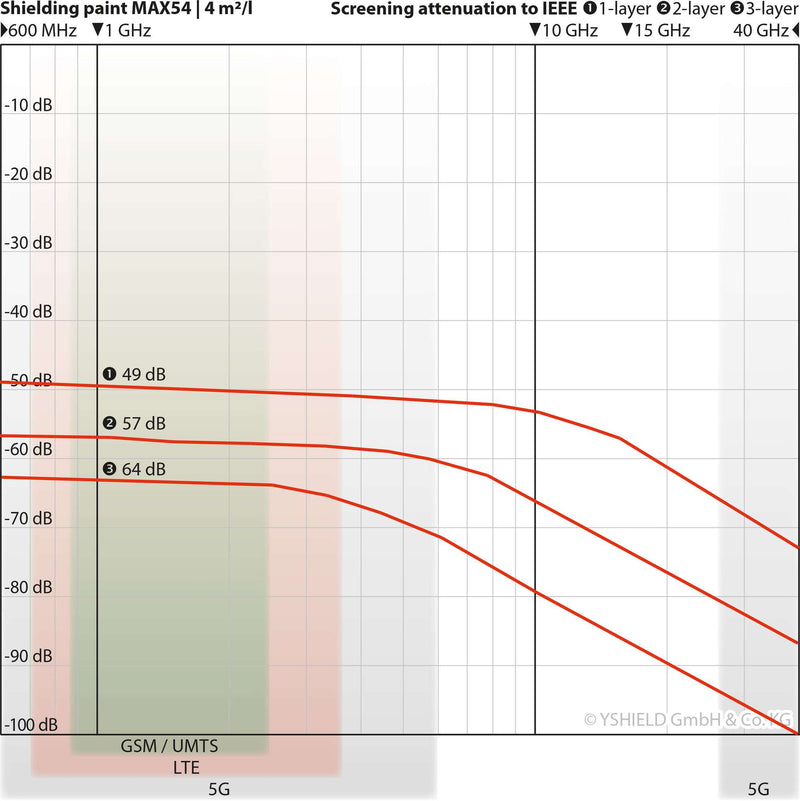

Screening attenuation

At a yield of 4 sqm/l:
At 1 GHz: Single layer 49 dB | Double layer 57 dB | Three layer 64 dB

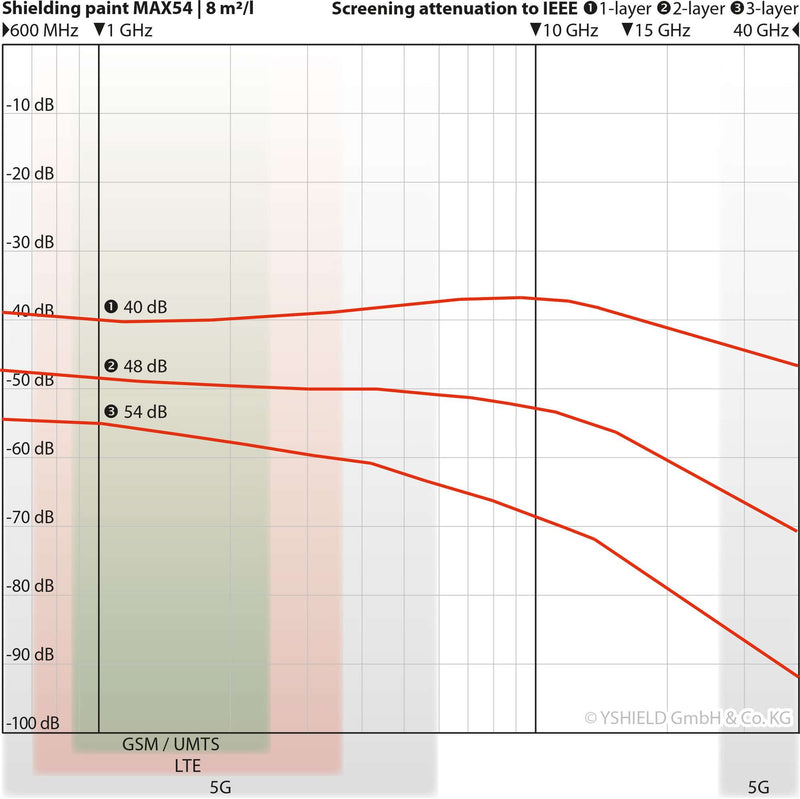

At a yield of 8 sqm/l:
At 1 GHz: Single layer 40 dB | Double layer 48 dB | Three layer 54 dB

Underground

Excellent adhesion on almost all substrates interior and exterior.

Top coating

Preferably covered with plastic bonded water-based emulsion paints, dispersion silicate paints, façade paints or silicon resin paints.

Grounding

Must be grounded! For interior, we recommend the grounding strap GSX plus grounding plate GS, for exterior the fiber additive AF3 plus the grounding plate GF.

Optional: Fiber additive AF3

For crack bridging and a better grounding we advise our fiber additive AF3 with long conductive carbon fibers.

Frost resistance

This product is frost resistant (proved for 5 frost-/thaw cycles) and can be shipped throughout the year by air cargo or ship.

Ingredients

Water, natural graphite, pure acrylics dispersion, carbon black, additives, preservative (BIT, INN, MIT).

Technical data

Please find detailed data in the table overview and the technical data sheet.

Ready for 5G

As we keep on developing our paints, they now have an almost linear shielding attenuation for a very large frequency range. This frequency range has already been including both 5G frequency spectrums for quite some time: FR1 (600 MHz - 6 GHz) and FR2 (24 GHz - 40 GHz).

Safety up to 40 GHz

We already invested in our own professional EMV laboratory many years ago, as external laboratories and experts could no longer fulfil our increasing expectation to a 140 dB measuring dynamics and 40 GHz. We not only issue our own shielding reports therein but also check each and every batch for your security on a daily basis. You receive measuring curves and laboratory reports up to 40 GHz with each of our shielding products, by which we bindingly guarantee the shielding effectiveness.

No nanotechnology

Our shielding paints are developed in accordance with strict ecological criteria. We use, for example, the carbon black with the lowest emission possible on the market and untreated natural graphite. We consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown.

Technical Data Sheet
